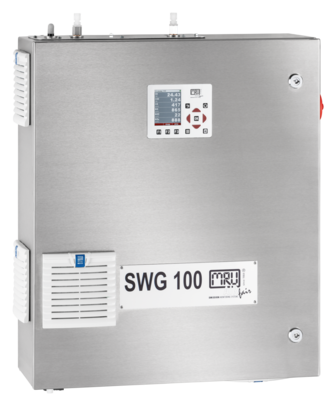

SWG 100 Syngas
Stationary Analyzer for Syngas - Applications
The complete, ready to use analyzer SWG100 Syngas
is the industrial solution for:
- biomass, coal and waste gasification plants
- cogeneration heat and power engines (CHP) using syngas
- small scale syngas analysis for research institutes and lab
MRU analyzer, series SWG100 Syngas is designed for use
in industrial safe areas or inside laboratories as well.
The analyzer can be installed in outdoor or indoor location,
can sample dry or wet syngas, pressurized or low pressure
gas and can be used from multiple sampling points.
- IP 54 stainless steel cabinet, with monitored, continuous venting
- accurate measurements, using infrared, electrochemical and thermal conductivity technology
- sampling from low suction -100mbar up to high pressure +200mbar of gas pipe
- no dilution of sample gas is required
- integrated gas cooler with condensate draining pump
- direct and continuous measurement, with pressure and temperature compensation
- multiple sampling point monitoring (up to 8 sites monitoring) with one analyzer
- flow restrictor orifice gas inlet for high pressure site
- with sample gas cut-off and power supply shut-off in case of alarm
- industry compatible rugged design , easy and fastest service design
Measuring range
| CO | 0 ... 100% (NDIR) |
| CO2 | 0 ... 100% (NDIR) |
| CH4 | 0 ... 100% (NDIR) |
| O2 | 0 ... 25% (EC) |
| O2 | 0 ... 25% (paramagnetic) |
| H2S | 0 ... 2.000/5.000 ppm (EC) |
| H2 | 0 ... 1,00%/50% TCD |
Dimensions and other data
| Weight | 45 kg |
| Power supply | Universal 90-240 Vac / 47-63 Hz / 200W |
| Dimensions | 700 x 600 x 210 mm (H x W x D) for wall or rack mounting |
| Gas conditioning | Electric gas cooler (Peltier) with constant dew point +5° C |
| Interfaces | 4 x analog output 4-20 mA, floating, max. load 500R 4 x analog input 4-20 mA, passive inputs RS485 digital interface (Modbus RTU) |
| Protection | Sample gas shut-down solenoid valve Power supply cut-off in case of system alarm |
