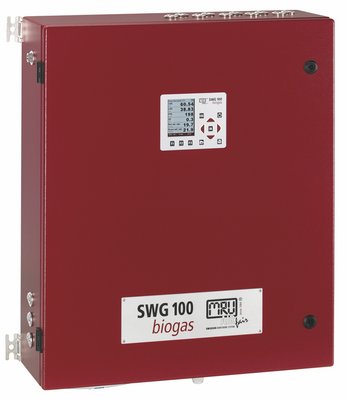

SWG 100 Biogas
Stationary Biogas-measuring system for continuous measurements
The complete, ready to use biogas analyzer is the SWG100 industrial solution to be used with:
- Biogas (anaerobic digestion) plants
- Cogeneration heat and power engines (CHP)
- Municipal or industrial waste water treatment sites
- Coal seam gas sites (coal bed methane)
- Food and animal waste processing plants
- Biomethan (gas to grid) plants
- Landfill sites
- Industry compatible rugged design for harsh industrial use
- Standard system safety included with continuously monitored fan ventilation of cabinet, gas flow restrictor orifice at gas inlet and CH4 gas detector
- Efficient sample gas preparation for fast and reliable measurements
- Sampling from low suction up to high pressure gas
- No dilution of the sample gas, neither use of compressed air is required
- Direct and continuous/discontinuous measurement, with pressure and temperature compensation
- Up to 10 sites monitoring (time sharing technique) with only one analyzer
- Ready to run delivery, minimum installation work
Measuring range
| O2 | 0 ... 25 % electrochemical |
| CH4 | 0 ... 100% NDIR |
| CO2 | 0 ... 100% NDIR |
| H2S | 0 ... 2.000 ppm electrochemical |
Dimensions and other data
| Operating temperature | +5 ... 45°C |
| Power supply | 110 ... 230 Vac / 50 ... 60 Hz / 200 W |
| Protection | IP 54 |
| Dimensions | 600x700x210 mm (HxWxD) = interior steelcase |
