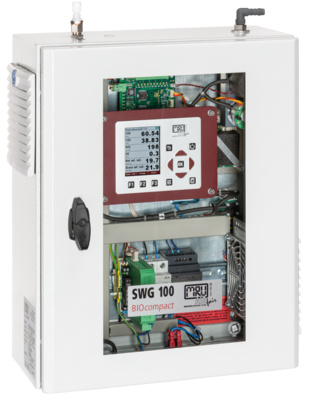

SWG 100 BIOcompact
Stationary biogas measuring system for discontinuous measurements
Cost effective stationary biogas analyser designed for:
- Discontinuous measurement, user settable up to 24 measurements per 24 hours
- Use in the harsh industrial environment of combined heat and power (CHP) engine gas monitoring
- Accurate measurements, incl. plug & play pre-calibrated sensors
- Up to 2 sites monitoring (times sharing technique)
The analyser samples dry biogas, pressurized or low pressure gas and can be used for single or dual point sampling of:
- Cogeneration heat and power engines (CHP)
- Municipal or industrial waste water treatement sites
- Small scale AD plants with dry fermentation
- Landfill sites
- Plug & play, pre-calibrated sensors
- Safety in use with gas flow restrictor orifice at gas inlet and ventilation
- Efficient sample gas preparation for fast and reliable measurements
- Sampling from low suction up to high pressure gas
- No dilution of the sample gas, neither use of compressed air is required
- Discontinuous measurement, user settable up to 24 measurements per 24 hours
- Up to 2 sites monitoring (time sharing technique) with only one analyzer
- Data storage and event logging on SD card
- IP 54 cabinet for use in harsh environment
- Ready to run delivery, minimum installation work, low service downtime
- May be installed outside or inside
Measuring range
| CH4 | 0 ... 100% (infrared NDIR) |
| CO2 | 0 ... 100% (infrared NDIR) |
| O2 | 0 ... 25 % (electrochemical) |
| H2S low | 0...50/250ppm |
| H2S high | 0...5.000/10.000ppm |
| H2 | 0...1.000/2.000ppm |
Calculated values
| Calorific value | 0 ... 50 MJ/m3; MJ/kg |
Dimensions and other data
| Display | 3,5" TFT colour display with backlight |
| Operating temperature | +5 ... 45°C or -10 ... 45°C with cabinet heater |
| Power supply | Universal 90 ... 240 Vac / 47 ... 63 Hz / 60W (360 W with cabinet heater) |
| Protection | IP 54 |
| Dimensions | 400x500x300 mm (WxHxD) wall or rack mounting |
| Weight | 14 kg |
