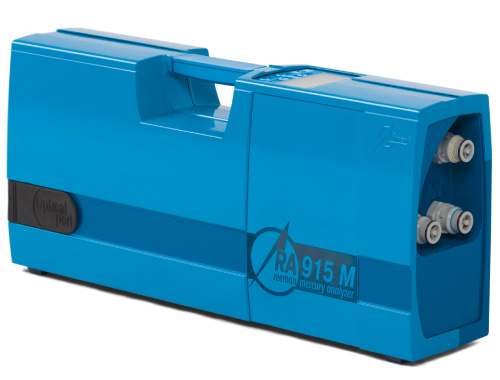

RA-915M
RA-915M is a supersensitive and highly selective portable analyzer that allows real-time mercury measurement in ambient and indoor air.
Being combined with dedicated attachments, the analyzer is used for mercury determination in solid and liquid samples, biological materials, and various gases. RA-915M-based sets can be used in stationary and field laboratories.
RA-915M is used for background air monitoring, mercury surveys including continuous measurements from vehicles, indoor and outdoor pollution detection and mapping, demercurization control, occupational health and safety, geochemical exploration, etc.
Direct measurements comply with EN 15852 standard for the determination of total gaseous mercury in the air.
- Direct continuous measurement; no gold traps, no compressed gases
- Ultra-low detection limit and highest selectivity
- Real-time operation mode for air and gases with 1 s response time
- Attachments for direct mercury determination in liquids, solids, and hydrocarbon gases
- Wide dynamic measuring range (six orders of magnitude)
- Auto zero drift correction
- Self-diagnostic with a built-in test cell
- Controlled by a keypad or a PC via USB interface
- Data logger for 122 hours of data acquisition, averaging, and storage
- Rechargeable battery for up to 8 hours operation
Application examples
| atrix | Limit of detection (LOD) | |
| Gaseous samples. Direct analysis | ||
| Ambient air | 0.5 ng/m3 | |
| Natural gas | 1 ng/m3 | |
| Solid and liquid samples. Thermal decomposition technique | ||
| Soils, rocks, sediments | 0.5 ppb (µg/kg) | |
| Water and solutions | 1 ppb (µg/L) | |
| Foodstuff | 0.5 ppb (µg/kg) | |
| Biological samples (tissues, blood, hair, etc.) | 0.5 ppb (µg/kg) | |
| Crude oil, gas condensate | 1 ppb (µg/kg) | |
| Naphtha | direct | 1 ppb (µg/kg) |
| preconcentration | 0.05 ppb (µg/kg) | |
| Coal | 1 ppb (µg/kg) | |
| Sorbent traps for stack gases | 0.5 ng* | |
| Solid and liquid samples. Cold vapor (CV) technique | ||
| Water and solutions | 0.1 ppt (ng/L) | |
| Urine | 0.1 ppb (µg/L) | |
| Biological samples | 0.1 ppb (µg/kg) | |
| Foodstuff | 0.1 ppb (µg/kg) | |
* range 0.5 - 50,000 ng
Analyzer can be used in combination with attachments for analysis of solid and liquid samples:
- RP-92 attachment for liquid and solid samples analysis using cold vapor technique (acid digestion and chemical reduction);
- PYRO-915+ attachment for liquid and solid samples analysis using thermal decomposition technique (with thermoscanning option);
- RP-91NG attachment for direct analysis of hydrocarbon gases of complex composition.
