Detector probe
Home | Detector probe
Detector probe

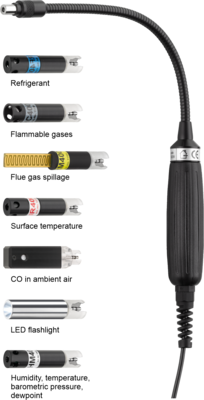

Multifunctional detector probe and measuring device
Outstanding benefits:

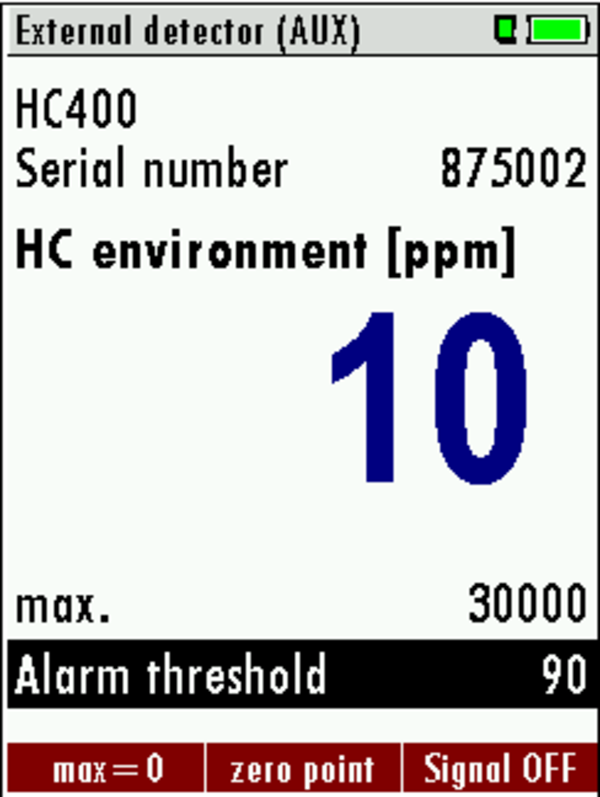

- Reliable gas leak detection

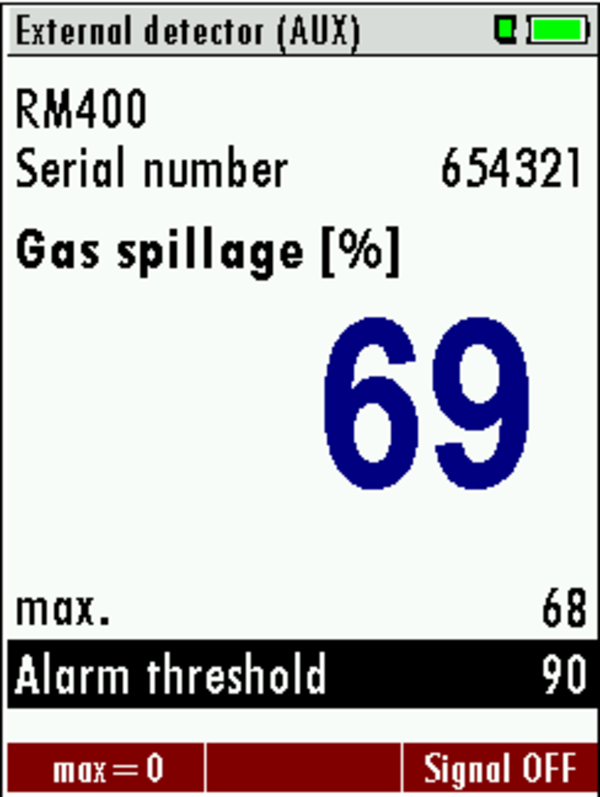

- spillage detection

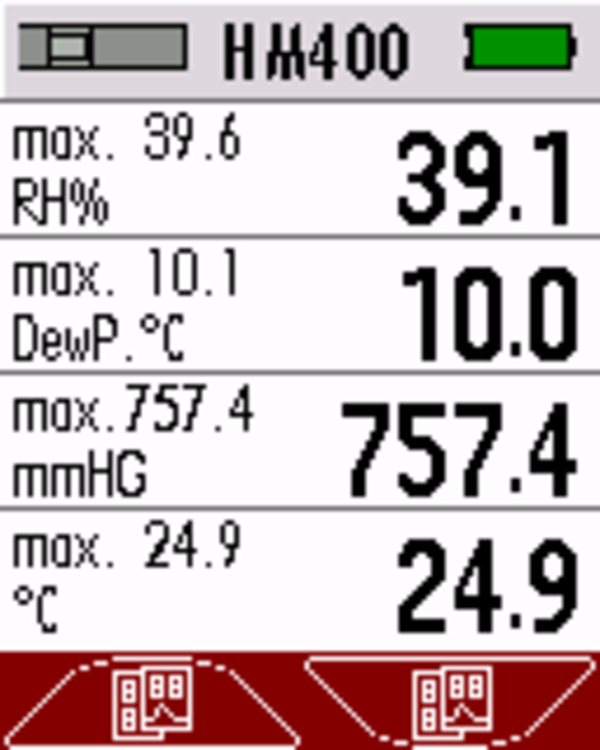

- indoor climate measurement

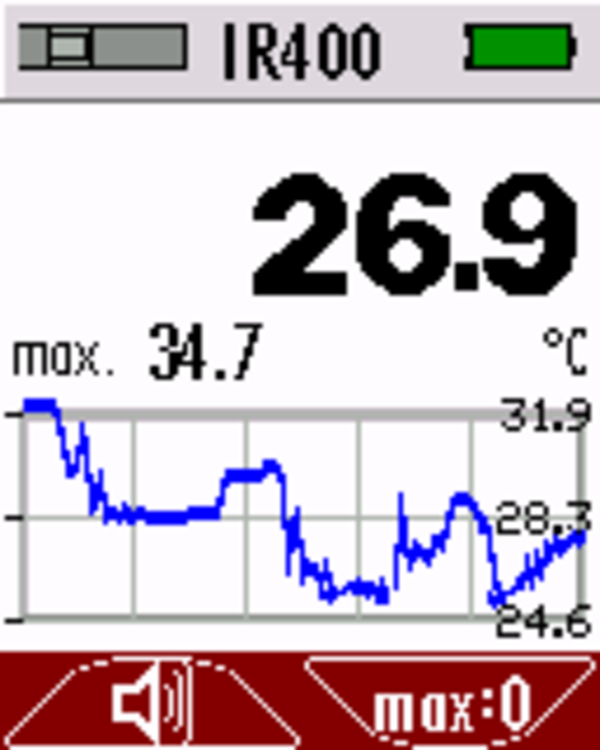

- contactless temperature measurement

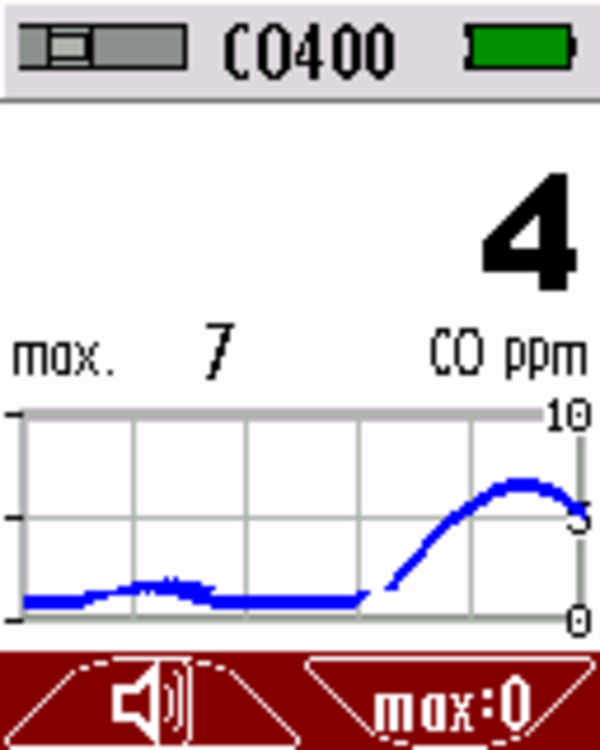

- measurement of carbon monoxide in ambient air

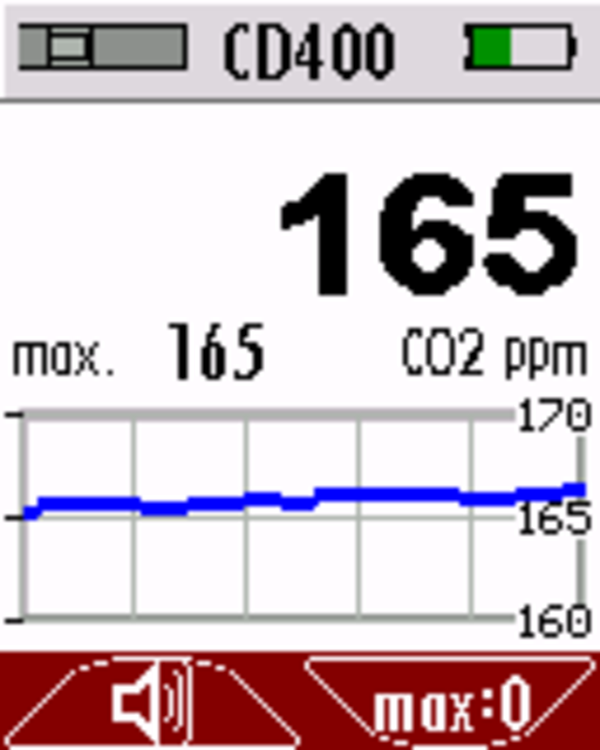

- measurement of carbon dioxide in ambient air
- with just one system
- Compatible to all MRU-devices with AUX-socket, e.g. SPECTRAplus, DM9600, DPM9600
- Sensor change during operation due to automatic identification by the device
- Optical alarm at the sensor and on the display of the device
- Acoustic alarm by the device
- Adjustable alarm thresholds
- Indication of measuring results in ppm or %LEL
- 2,0 m cable and flexible gooseneck
- Calibration factors stored in the sensor, thus same sensor useable with different devices
- Easiest handling: Sensor change during operation possible
Measuring range
| Refrigerant | R134a, R1234ze, R32, H2, R22, R125, R152a, R170, R227, R290, R401A, R402, R404a, R407, R410a, R413a, R417a, R422, R427, R448a, R449a, R450a, R452a, R452b, R454, R513a, R600(a), R1150, R1234yf, R1270 |
| CH4 | 0...22.000 ppm |
| C3H8 | 0...8.500 ppm |
| H2 | 0...20.000 ppm |
| Surface temperature (Infrared) | -70...380°C |
| Relative humidity | 0...100% |
| Amount of leakage | 0...100 |
| Temperature | 0...60°C |
| Absolute pressure | 300...1.100 hPa |
Dimensions and other data
| Power supply | via coupled host instrument |
