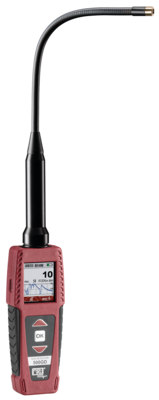

500GD
Multifunctional detector and measuring device (with suction feature)
- Fast, selective and powerful with suction feature
- Reliable gas leak detection and spillage test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Fast measurement results due to integrated suction feature (<= 2 seconds)
- Search mode for quick leak detection
- Reliable zeroing, even with contaminated ambient air
- Display in ppm for precise location of gas leaks and determination of the gas concentration

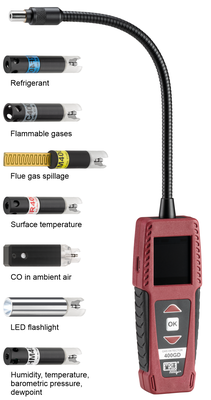

- Sensor change during operation possible, automatic recognition by the device
- Adjustable alarm thresholds (only leak detection)
- Optical alarm on the display of the device (only leak detection)
- Acoustic and vibration alarm by the device (only leak detection)

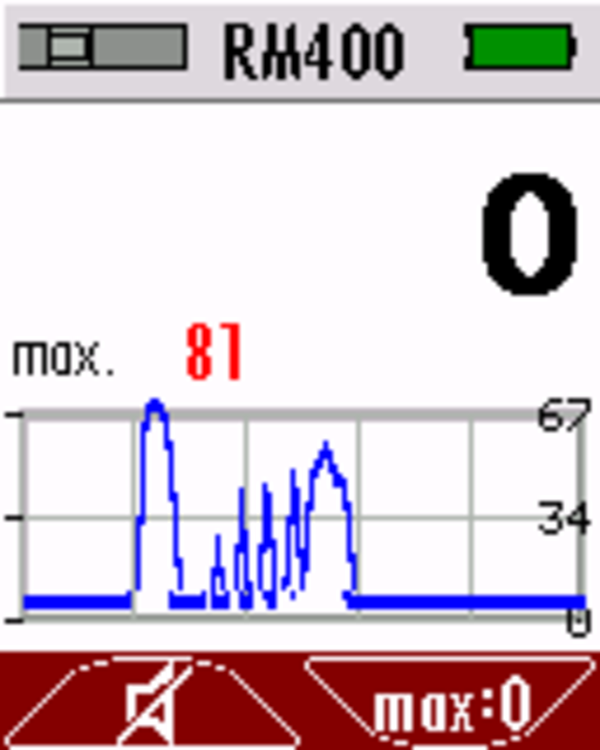

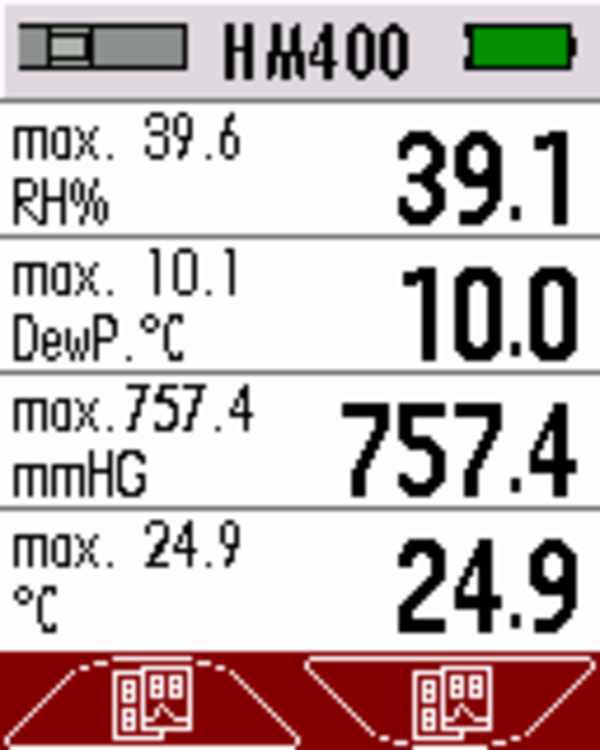

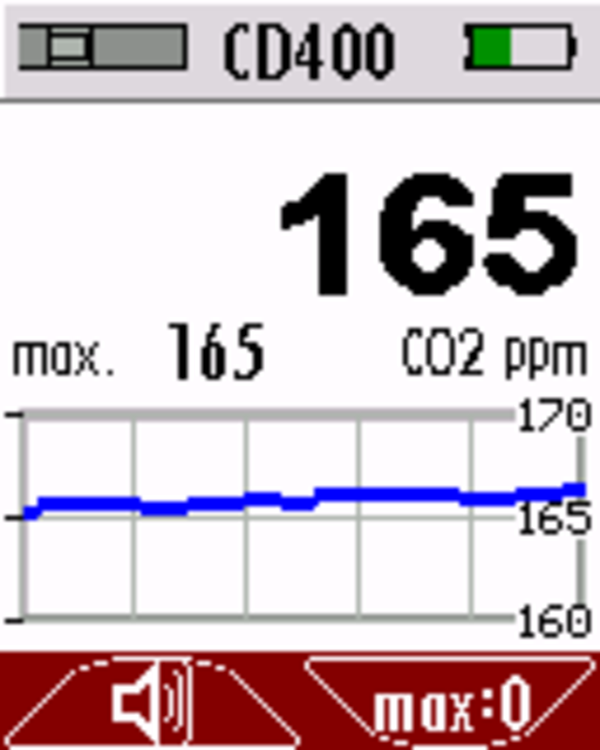

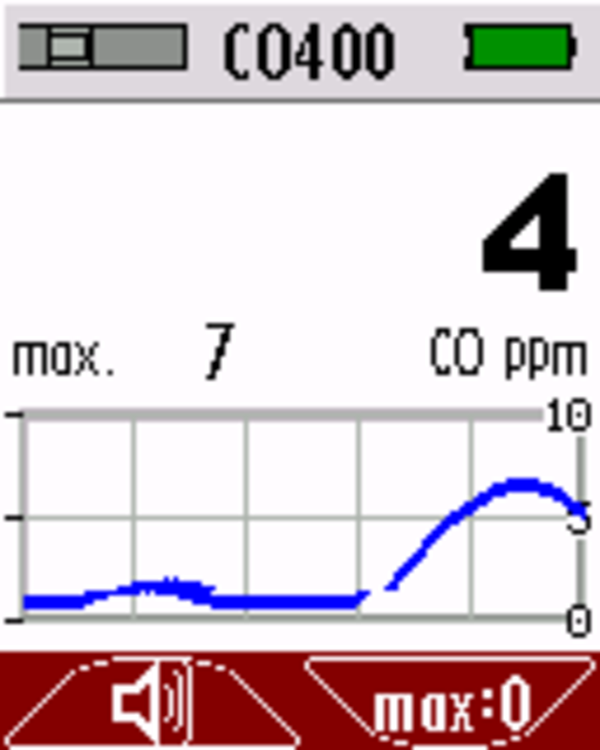

- Clear graphic display (TFT)
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Display of measurement results also as QR code (forwarding measuring results via e-mail)
Measuring range
| CH4 | (HC sensor) 0 ... 22.000 pm |
| H2O | (Sensor spillage test) 0 … 100 % |
| Relative humidity | 0 ... 100% RH |
| Absolute pressure | 300 ... 1.100 hPa |
| Surface temperature - contactless (IR) | -70 ... 380° C, field of view 35° |
| HC (C3H8) | 0 ... 8.500ppm |
| H2 | 0 ... 20.000ppm |
| Refrigerant | CFC, HCFC, PFC, HFC, HFO |
| CO | (CO-Sensor) 0 ... 1.000 ppm |
Calculated values
| Dew point | calculated from humidity and temperature |
Dimensions and other data
| Battery capacity | approx. 20 hours |
| Weight | approx. 230 g (without sensor) |
| Dimensions | 135 x 50 x 25 mm (LxBxT), Sensor neck: 250 mm |

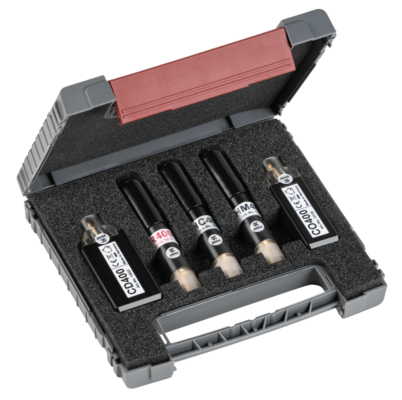

Plastic case for small units
