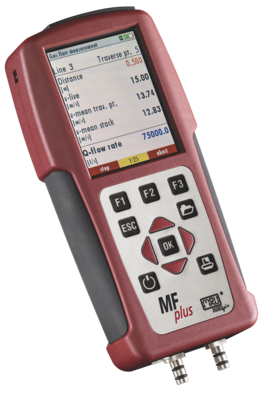

MFplus "16911"
Dedicated to travers points volumetric flow rate measurement in industrial stacks compliant to European Standard EN 16911-1, to ISO 10780 and to USEPA 40CFR part 60, method 2
Professional solution with:
- Compatible for all pitot tubes available on the market
- Intuitively, bright colours graphic interface
- High accurancy pressure sensors, temperature compensated
- Dual K-type thermocouple connectors
- Long time operation using the NiMH built-in battery
- Internal storage and SD card high volume data storage
- 100mbar high accuracy pressure / differential pressure
- 1000°C temperature / differential temperature, K-type
- Barometric pressure

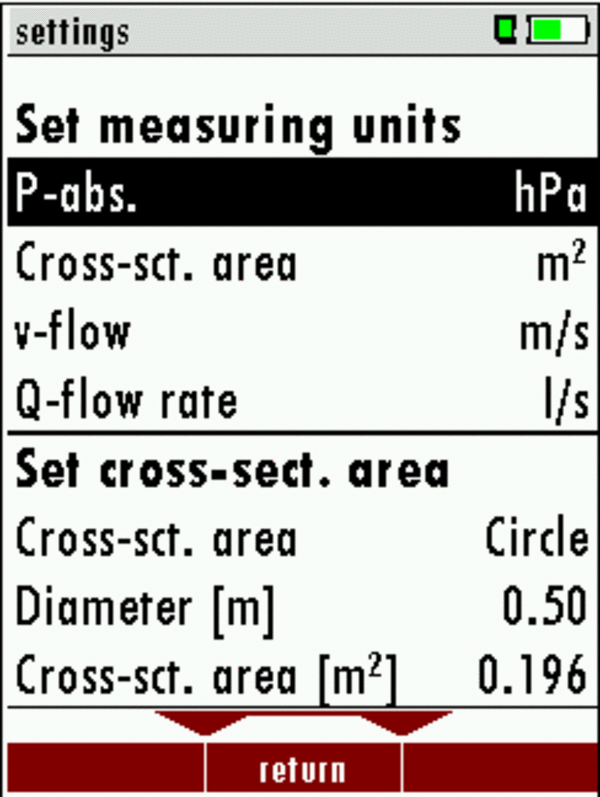

- User free selectable, all metric and imperial units

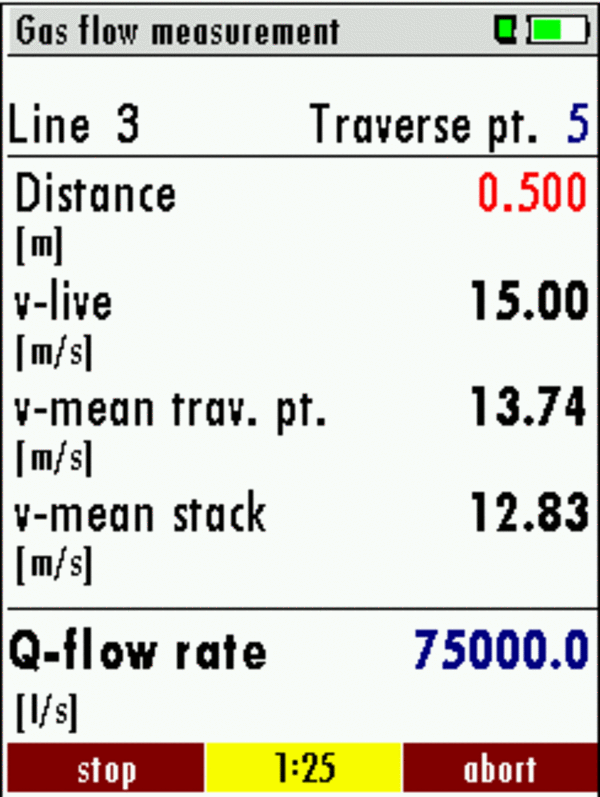

- Instant and average data, dry and wet gas data, etc

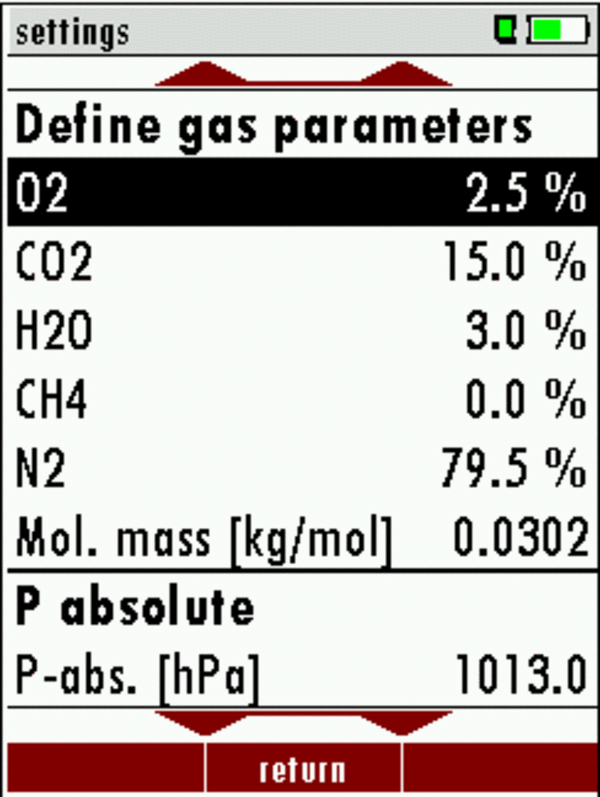

- User free editable (duct size, gas data, nr traverse points)
- Site and data storage (up to 16.000 measurements)
- Via built-in SD-card, in CSV format
- Brilliant 3,5“ TFT colour display
- Li-Ion Battery for 30 hrs operation time
- Robust enclosure, dirt resistant keypad, metal connectors
- 90 x 205 x 38 mm (w / h / d)
- Lightweight - approx. 500 g
- Mini-USB (data transfer and charging)
- Universal wall plug charger 100…240Vac / 5Vdc / 1A
Measuring range
| Differential pressure | ± 100 hPa |
| Flow Velocity | 1 m/s up to 50 m/s |
| Absolute pressure | 700 ... 1.200 hPa |
| Fluegas temperature | -20 ... +1.200 °C (K-type thermocouple) |
| Ambient air temperature | -20 ... +80 °C (K-type thermocouple) |
Dimensions and other data
| Data transfer | Mini-USB or SD-card |
| Display | Colour, backlit 3,5"TFT |
| Operating temperature | -10 °C to +50 °C, max. 95 % RH, non condensing |
| Battery capacity | internal NiMH battery, 30 hours mains free operation |
| Power supply | USB wall-plug battery charger, 100-240 Vac, 5 Vdc-1A |
| Protection | IP 43 |
| Weight | approx. 470 g |
| Dimensions | 90x205x38 mm (WxHxD) |
